Rockmite][++ Transceiver kit Price: $95.00

US orders: DX orders:

This item is for the newest kit in QRPme*s Rockmite lineup.

The Rockmite][++ is an upgraded version of the popular Rockmite][ transceiver kit.

Features:

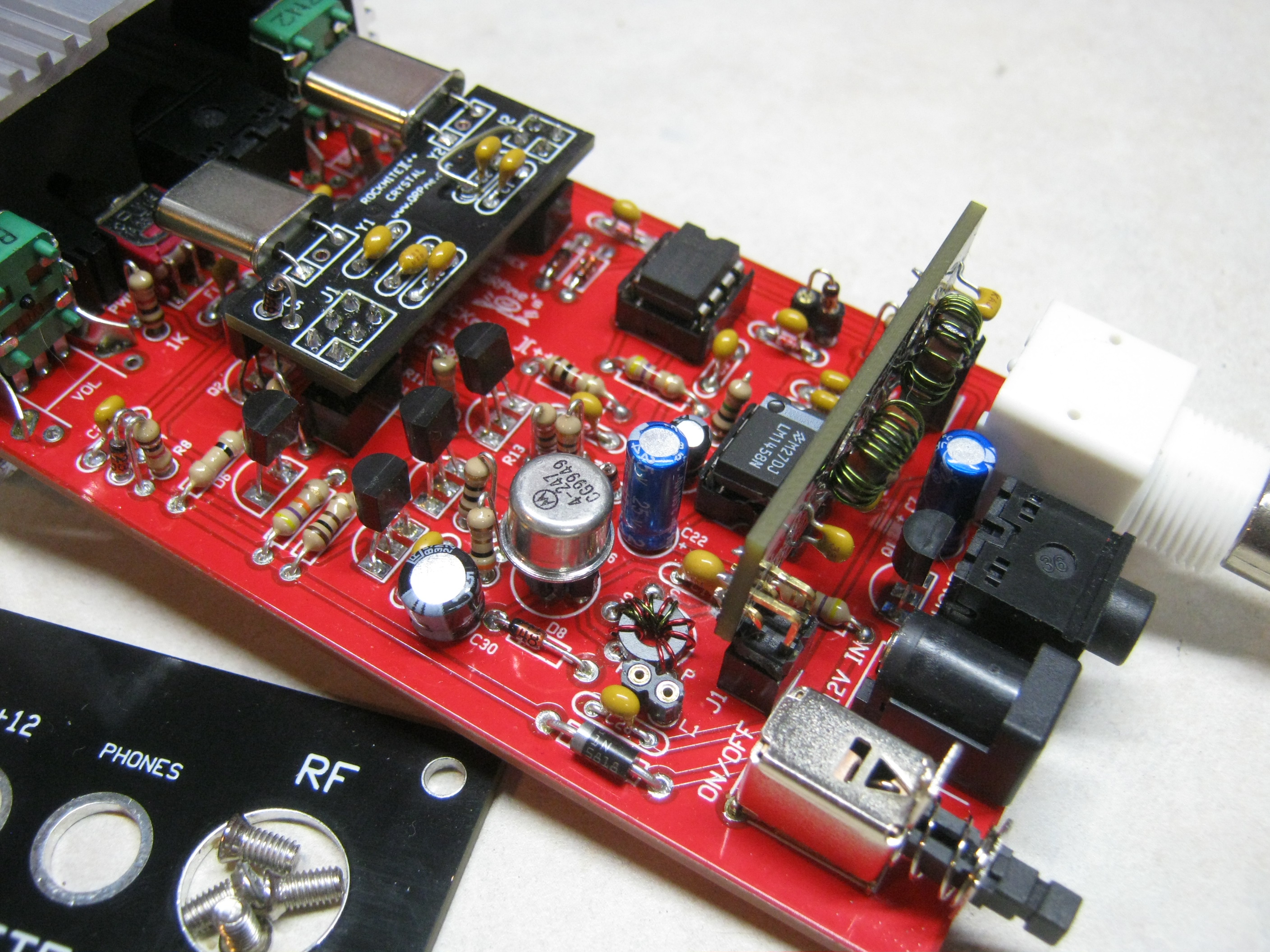

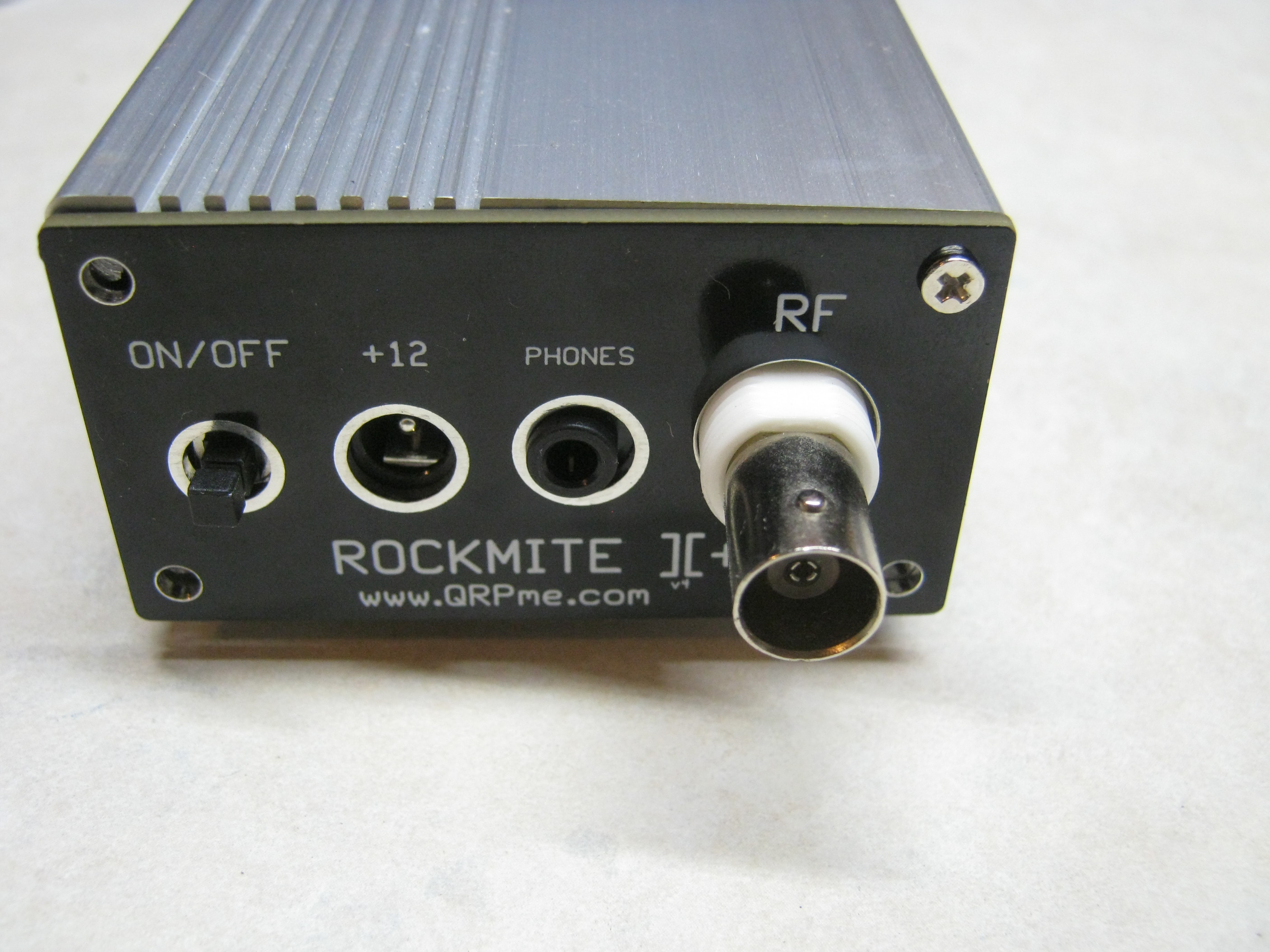

All connectors and controls mounted on the pcb so no more clunky wiring issues.

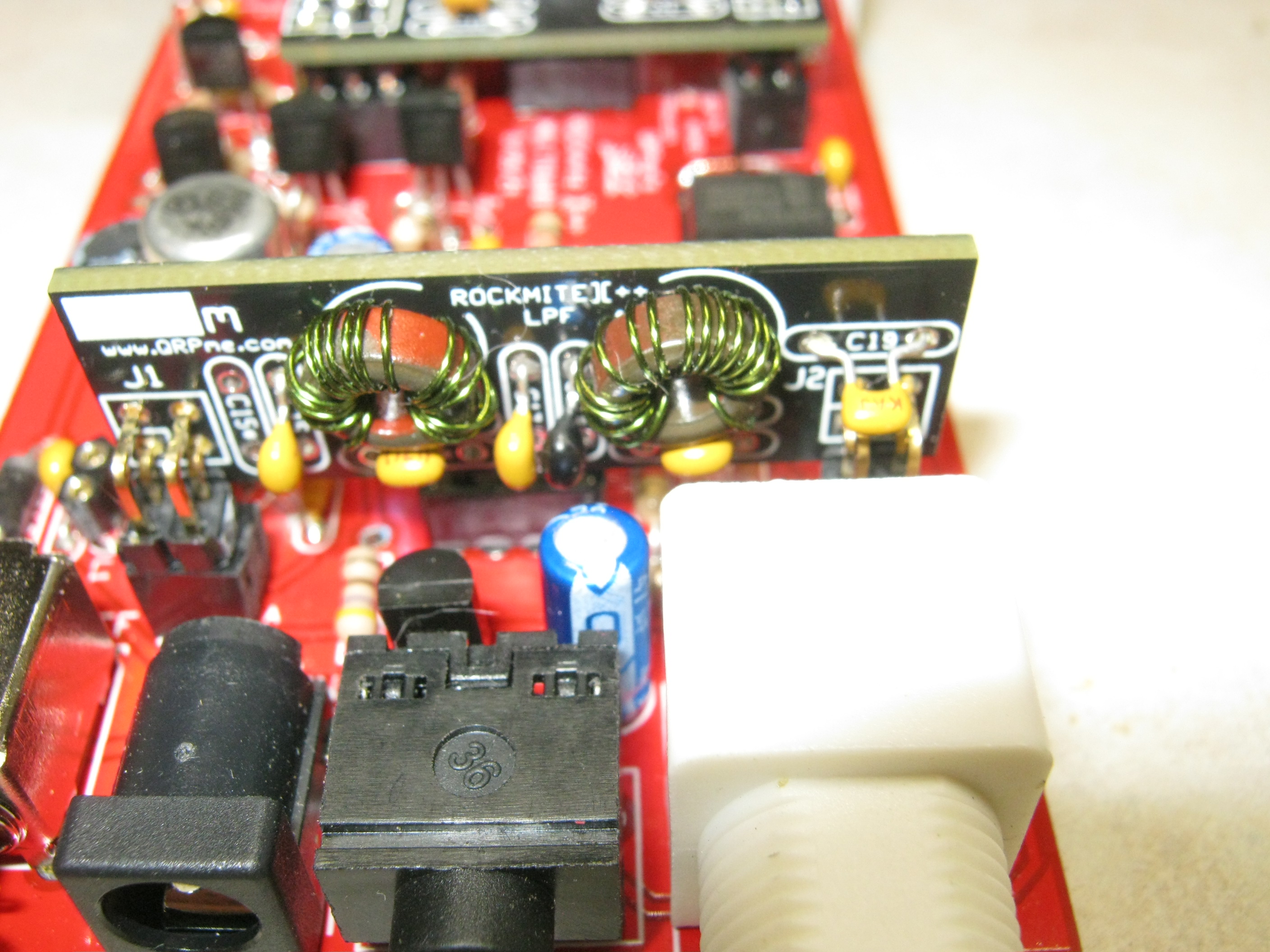

Quick change the band by swapping the low pass filter module.

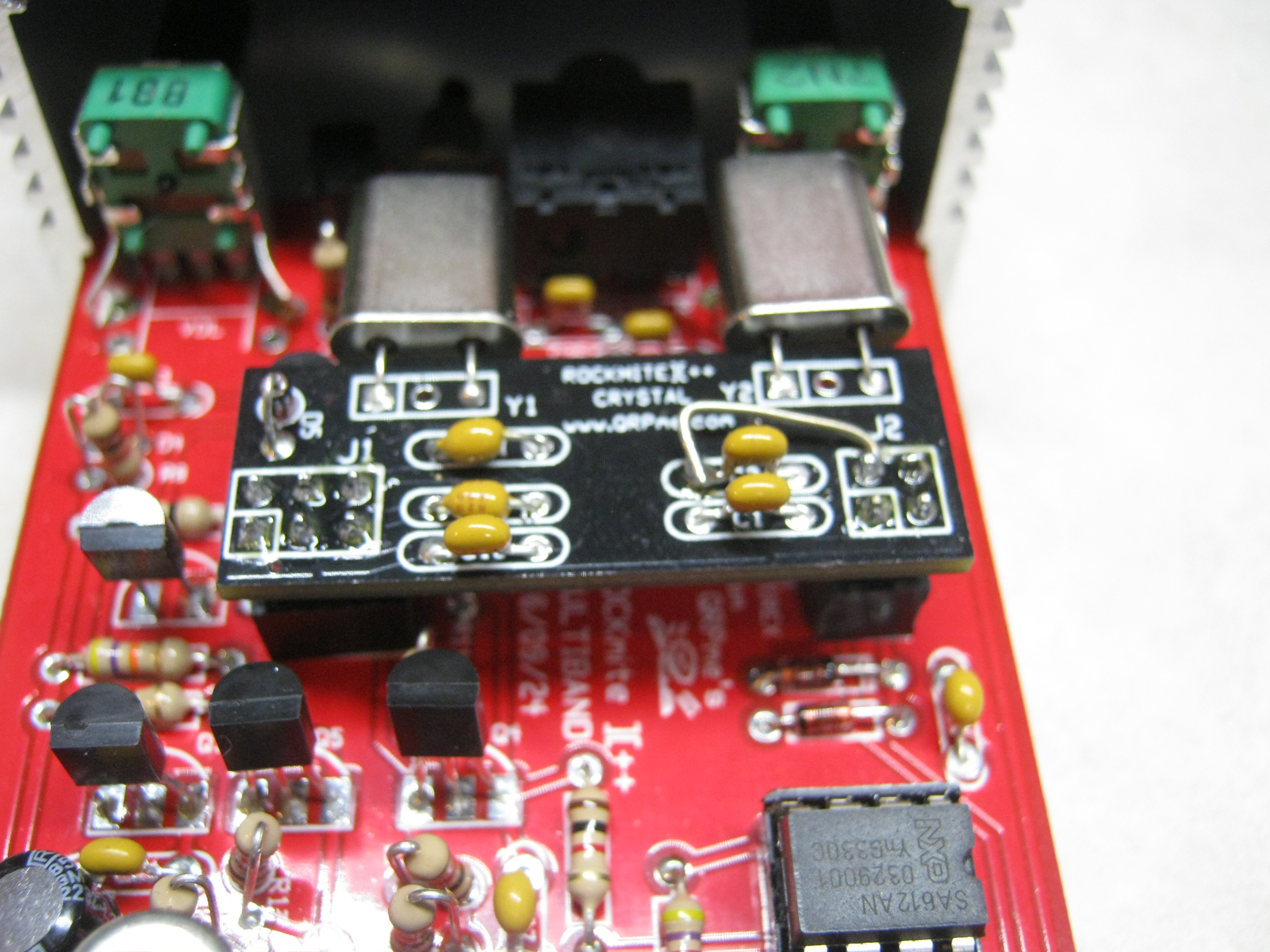

Quick change the 2 crystals, oscillator and receive filter, by swapping the crystal module.

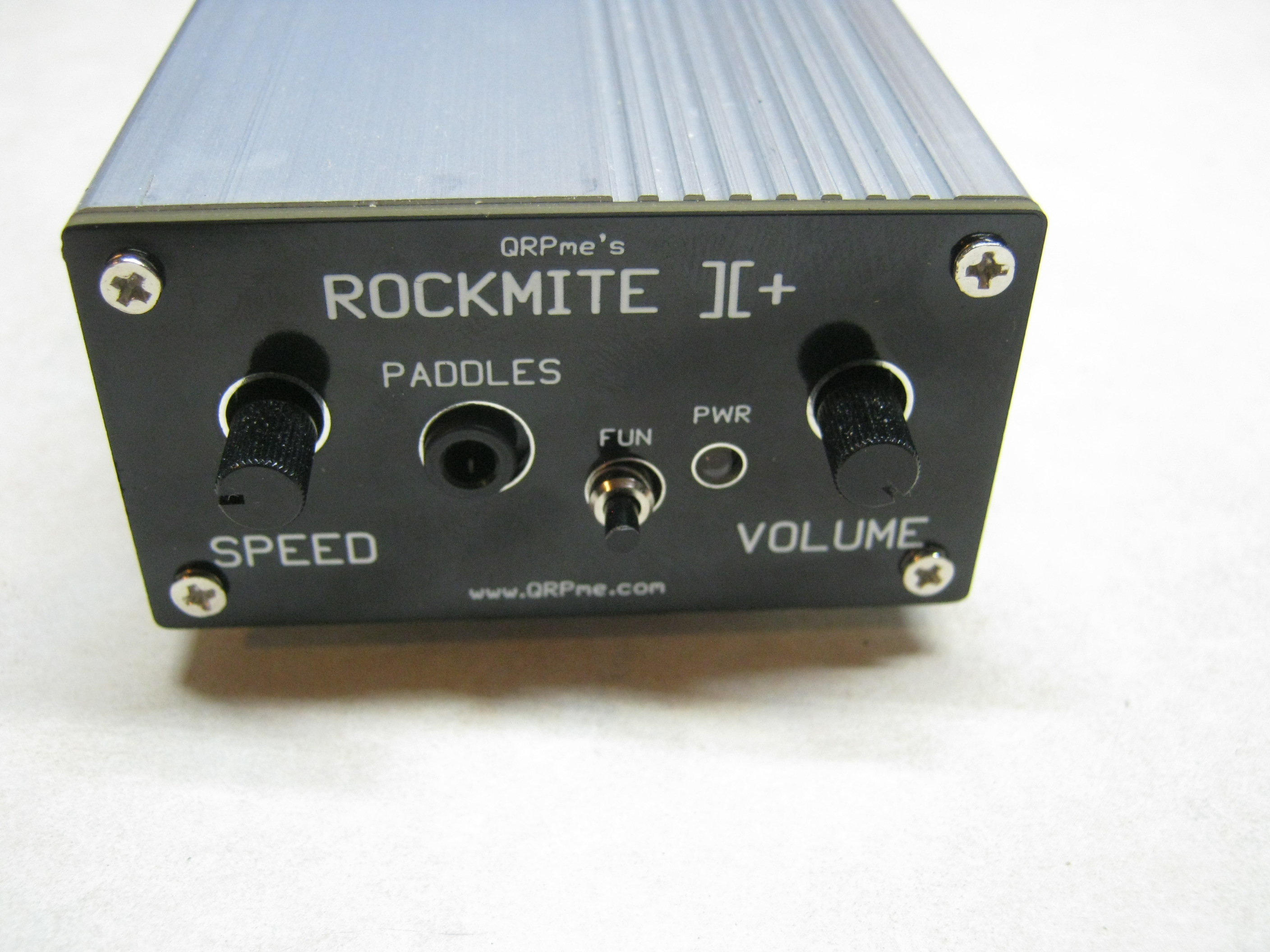

Board easily slips into our new extruded aluminum case.

Power & efficiency module now built in.

40m version tested at 825 mW as stock build.

Initially sold as 40m version but other band modules will be added as soon as the parts arrive...(days not weeks or years)

Basic 40m kit comes with all parts for:

the main board

40m low pass filter board

2 crystal boards including 7030 crystals and 71xx crystals (depending upon current crystal stock)

2 bare crystal boards for rolling your own...
